LMPL_GSP_00100_01 Multiple Output Phase-Locked Source

New Portable Signal Generator

GED completed development of a portable RF Signal Generator Ranging from 1 to 2 GHz with 100kHz Resolution. The generator is fully PC-programmable and features programmable pre-set frequencies, amplitude control, disable outputs, automatic reference detect and many other features making it extremely versatile. This is the newest member of our diverse family of frequency sythesizers.

Google
Search GED www

Application

  • Six Outputs at a Fixed Frequency
  • Internal Reference
  • Low Harmonics
  • Available at any Fixed Frequency up to 2 GHz

General Specifications

Center Frequency:100 MHz
Output Power:+2 dBm ±1 dB
Harmonic:-25 dBc Typ.
Spurious:-70 dBc Typ.
Phase Noise:-125 dBc/Hz Typ. @ 10 KHz Offset
Reference Frequency:Internal 10 MHz
Frequency Accuracy:1 ppm
DC Supply: +5VDC @ 400mA Max.
Operating Temperature:      -10 to +60° C
Package:6.5"x 4.5"x 1.88" Metal Housing
RF in/out Connector:SMA Female

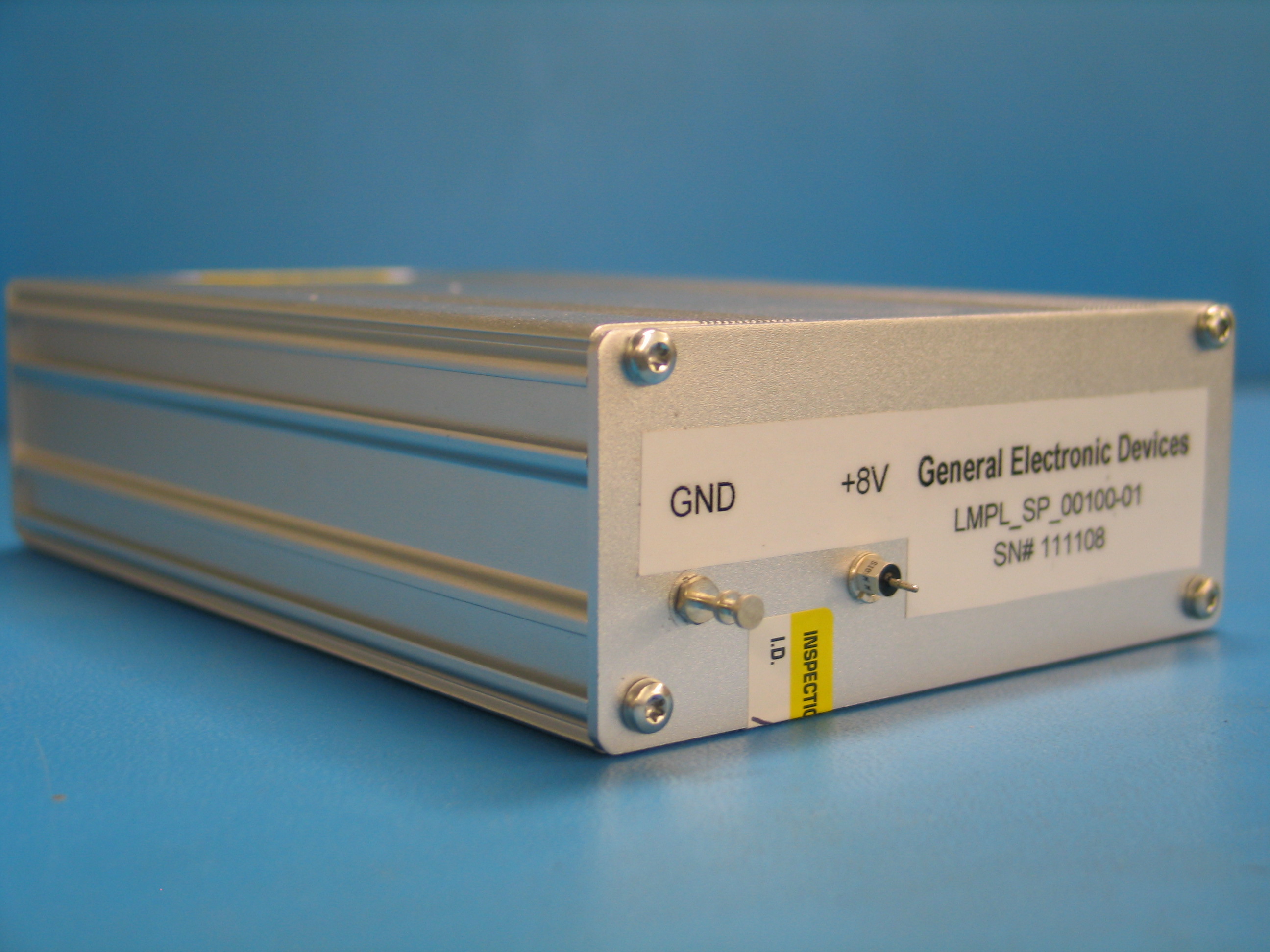

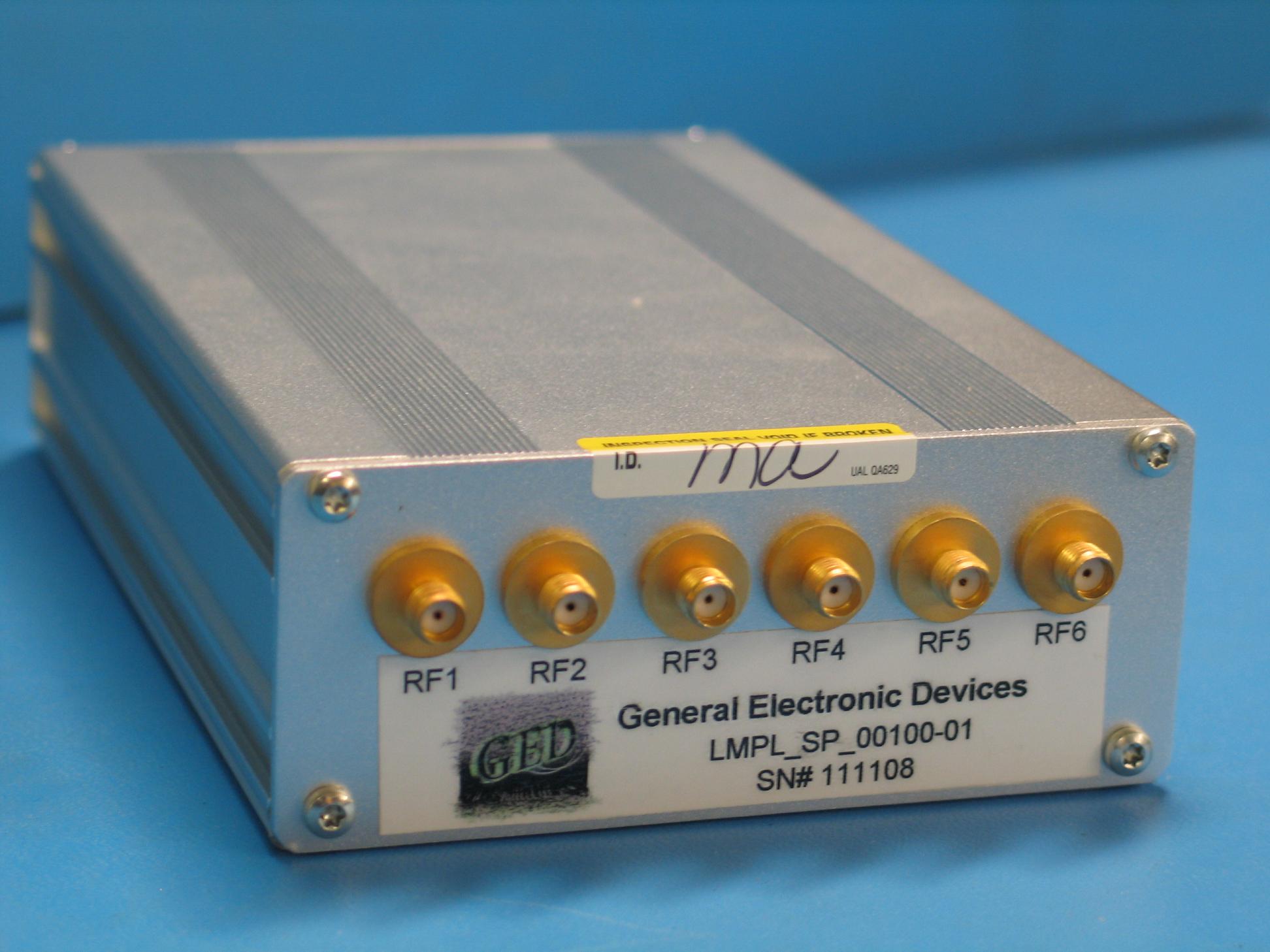

LMPL_SP_00100_01 LMPL_SP_00100_01_back
