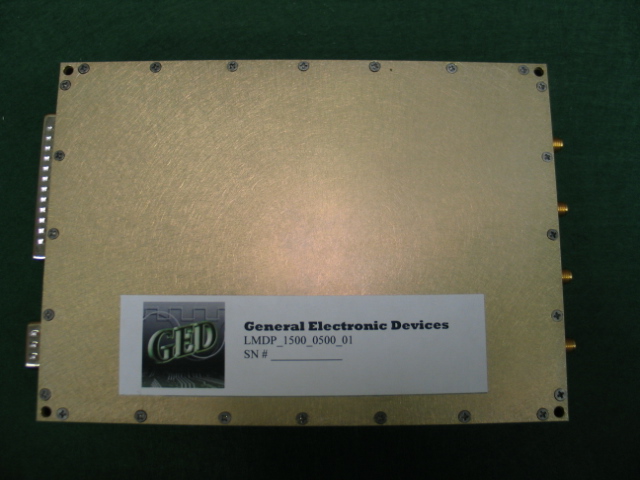

Multi-Loop Frequency Synthesizer: LMDP_1500_0500-01

New Portable Signal Generator

GED completed development of a portable RF Signal Generator Ranging from 1 to 2 GHz with 100kHz Resolution. The generator is fully PC-programmable and features programmable pre-set frequencies, amplitude control, disable outputs, automatic reference detect and many other features making it extremely versatile. This is the newest member of our diverse family of frequency sythesizers.

Google
Search GED www

Product Features

  • One Octave Frequency from 1000 MHz to 2000 MHz
  • Parallel or Serial Frequency Control is Optional
  • High Harmonic Rejection
  • Auto-switching Internal and External Reference
  • Buffered Reference Output
  • Visual Indicators for Lock Detect

General Specifications

Main Output
Frequency Range:1000MHz to 2000MHz
Resolution(Step Size): < 24 Hz
Output Power:+10 dBm ±3 dB
Harmonic:-20 dBc Typ.
Spurious:-45 dBc Typ. for Fout ±250kHz
-70 dBc Typ. for all others
Phase Noise @ 1500MHz Output(Internal Ref.):-80dBc/Hz @ 1 KHz Offset
-105dBc/Hz @ 100 KHz Offset
Frequency Accuracy:Depends on reference input
Auxiliary Output
Frequency:10 MHz Fixed
Output Power:>+3 dBm
Internal Reference and Interface
Internal Ref. Frequency:10MHz
Internal Ref. Stability:±1ppm
Lock Indicator:TTL High for Lock
LED "LD":"ON" for normal operation
"OFF" for out of lock
LED "EXT":"ON" external reference present
"OFF" No external reference present
DC Supply:+5VDC @ 1000mA Max; +15VDC @ 100mA
Mechanical and Environmental
Operating Temperature:-10 to +60° C
Storage Temperature:-20 to +85° C
Package:5.00"x 7.00"x 1.25" Metal Housing
Main Out: SMA Female
Auxiliary Out: SMA Female, 10MHz
Ref. In:SMA Female
CNTRL:DB-37 Male (JP2)
DC Supply:DB-9 Male (JP1)
LMDP_1500_0500_01 LMDP Package Information
