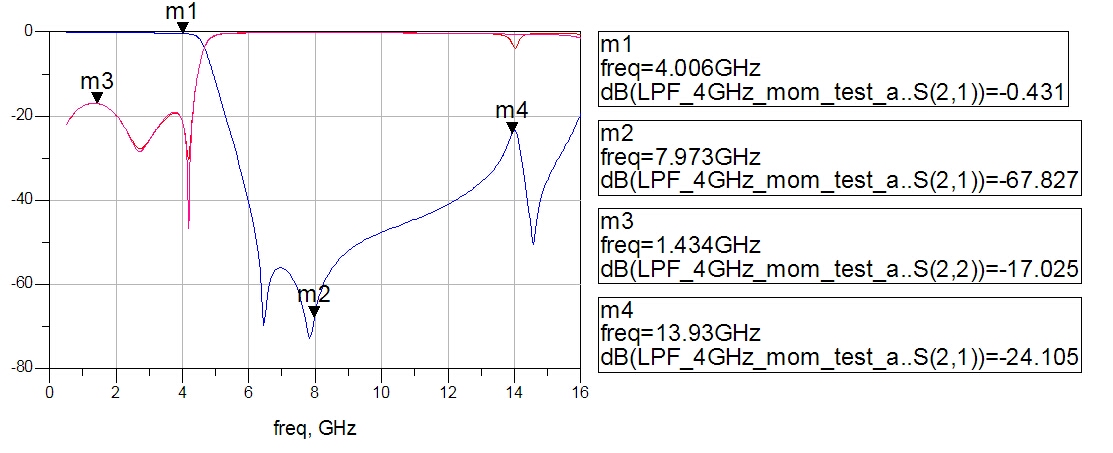

Low Pass Filter 4GHz Pass-band revA
| Parameter | Min | Typ | Max | Units |
|---|---|---|---|---|
| IL@4GHz | 0.5 | 1 | dB | |
| IL@8GHz | 45 | dB | ||
| IL@12GHz | 35 | dB | ||
| RL in-band | -16 | dB | ||
| Power Handling | 5 | W | ||
| Dimensions | 50.3x18x15.8 | mm^3 | ||
| Operating Temp. | -30 | 25 | 85 | C° |
