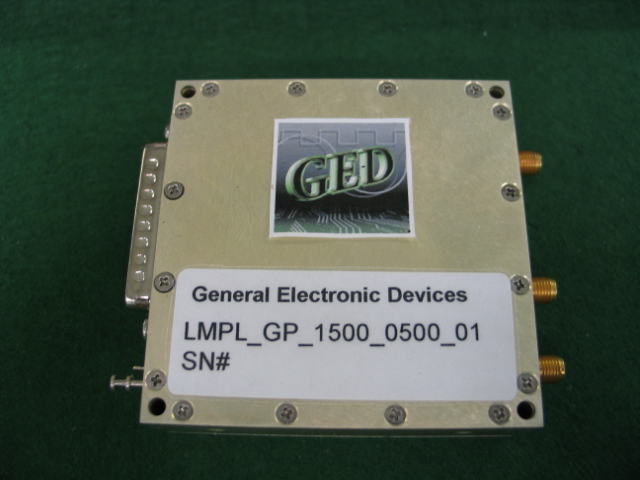

Parallel Programmable Frequency Synthesizer: LMPL_GP

New Portable Signal Generator

GED completed development of a portable RF Signal Generator Ranging from 1 to 2 GHz with 100kHz Resolution. The generator is fully PC-programmable and features programmable pre-set frequencies, amplitude control, disable outputs, automatic reference detect and many other features making it extremely versatile. This is the newest member of our diverse family of frequency sythesizers.

Google
Search GED www

Application

  • One Octave Frequency from 1000MHz to 2000MHz
  • 12 Bit Parallel Frequency Control
  • High Harmonic Rejection
  • Auto-switching Internal and External Reference
  • Buffered Reference Output
  • Visual Indicators for LD and EXT/IN
  • Single DC Supply (+15VDC)

General Specifications

Main Output (J1)
Frequency Range:1000 MHz to 2000 MHz
Resolution(Step Size):500kHz
Output Power:+10 dBm ±3 dB
Harmonic:-25 dBc Typ.
Spurious:-60 dBc Typ.
Phase Noise @ 1500MHz Output(Internal Ref.):-73dBc/Hz @ 1 KHz Offset
-110dBc/Hz @ 100 KHz Offset
Frequency Accuracy:Depends on reference input
Auxiliary Output (J2)
Frequency:10 MHz Fixed
Output Power:>+3 dBm
Reference Input (J3)
Frequency:10MHz
Input Power:+3 dBm ±3 dB
Internal Reference and Interface
Internal Ref. Frequency:10MHz
Internal Ref. Stability:±1ppm
Lock Indicator:TTL High for Lock
LED "LD":"ON" for normal operation
"OFF" for out of lock
LED "EXT":"ON" external reference present
"OFF" No external reference present
DC Supply:+15VDC @ 350mA Typ.
Mechanical and Environmental
Operating Temperature:-10 to +60° C
Storage Temperature:-20 to +85° C
Package:3.0"(76.2mm)x 3.0"(76.2mm)x 1.00"(25.4mm) Metal Housing
Main Out:J1, SMA Female, 1000-2000 MHz
Auxiliary Out:J2, SMA Female, 10MHz
Ref. In:J3, SMA Female
CNTRL:DB-25 Male (JP1)
DC Supply:Capacitive Feed-through

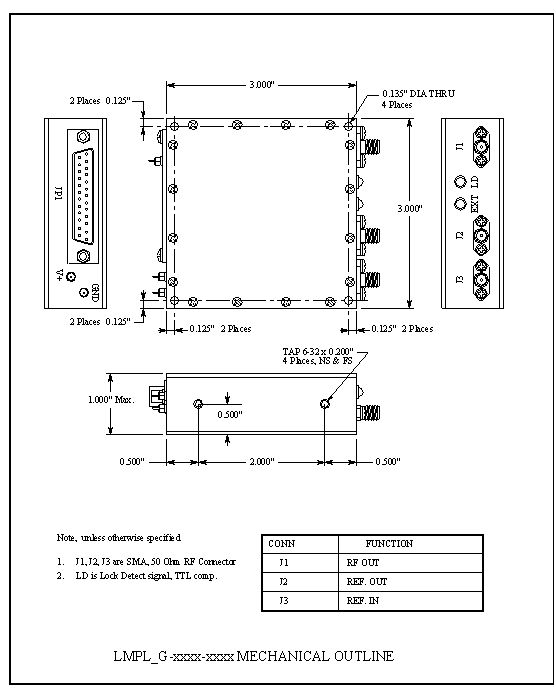

LMPL-G Package Information LMPL-G Package Information
