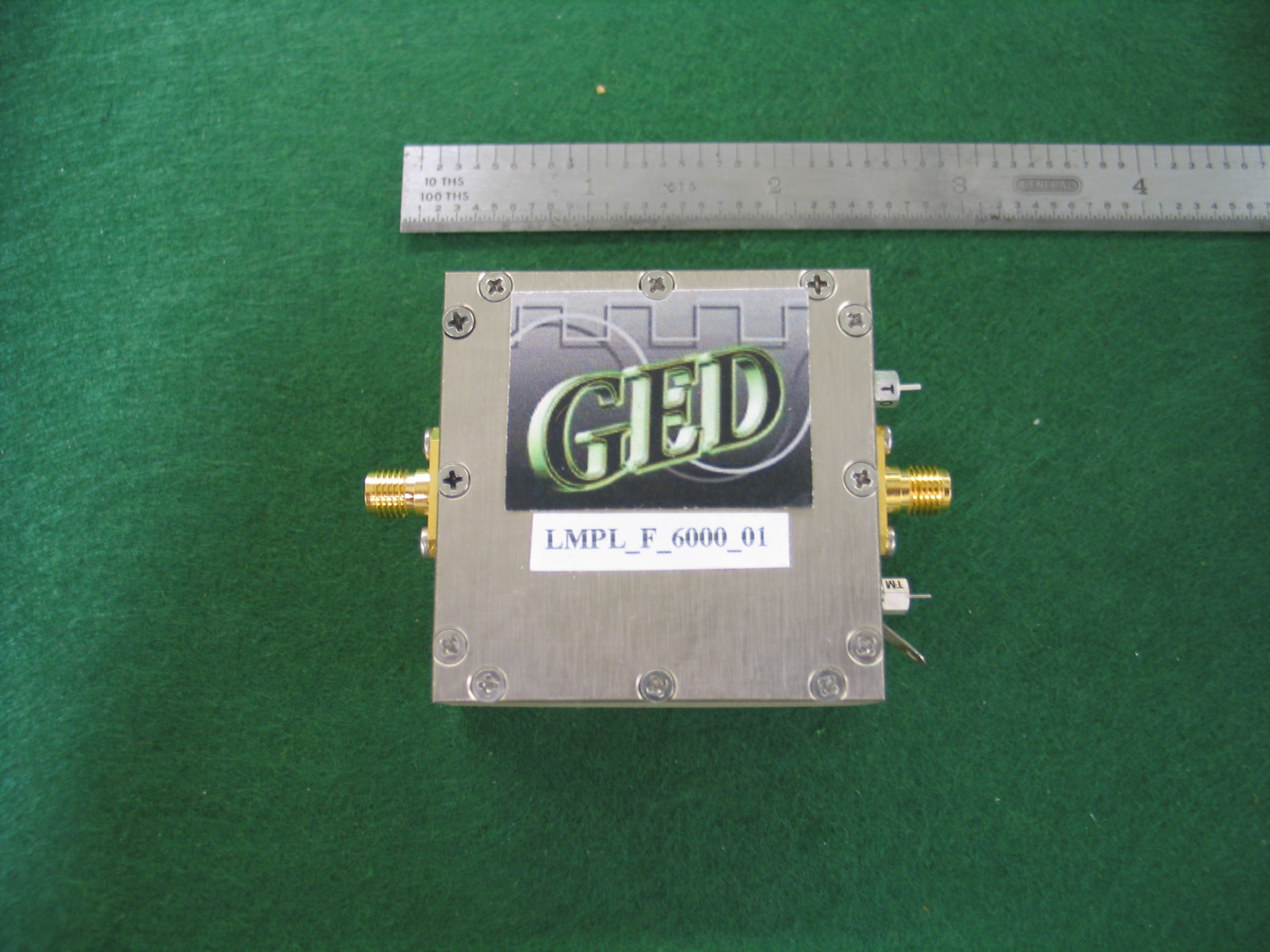

LMPL_F_6000_01 Phase-Locked Frequency Source

New Portable Signal Generator

GED completed development of a portable RF Signal Generator Ranging from 1 to 2 GHz with 100kHz Resolution. The generator is fully PC-programmable and features programmable pre-set frequencies, amplitude control, disable outputs, automatic reference detect and many other features making it extremely versatile. This is the newest member of our diverse family of frequency sythesizers.

Search GED www

Product Features

  • Compact Metal Housing
  • Single +5Volt Supply @ 120 mA
  • Internal Reference
  • TTL Lock Detect Output

General Specifications

Center Frequency:6000 Mhz
Output Power:+7 dBm ±2 dB
Stability:±2.5 ppm
Harmonic:-50 dBc Max.
Spurious:-70 dBc Max.
Phase Noise:-88 dBc/Hz @ 10 KHz Offset
-124 dBc/Hz @ 1 MHz Offset
Lock Detect:TTL High for Lock
Power Supply:+5VDC @ 120 mA
Operating Temperature:      -20 to +70° C
Storage Temperature:      -40 to +85° C
Package:2.00" x 2.00" x 0.75" Metal Housing
Connectors:RF Out (SMA Female)
DC In (Capacitive Feedthru)
Status Out (Capacitive Feedthru)
PDF File of the drawing
LMPL-F Package Information
