New Portable Signal Generator
GED completed development of a portable RF Signal Generator Ranging from 1 to 2 GHz with 100kHz Resolution. The generator is fully
PC-programmable and features programmable pre-set frequencies, amplitude control, disable outputs, automatic reference detect and many other features making it extremely versatile.
This is the newest member of our diverse family of frequency sythesizers.
|
|
Description
LMFX_SXXX is a series of frequency translators, using PLL technique to translate any input frequency from
8KHz to 200MHz to a specific output frequency from 1MHz to 800MHz.
Up to 4 different input frequencies could be locked to a high quality SAW or Crystal voltage controlled oscillators.
Feature
- Single 5V or 3.3V power supply
- Optional HCMOS or single ended PECL input signal
- Comp. PECL output, or HCMOS output option for below 200MHz
- Low output jitter
- Lock signal alarm
- Control voltage monitor output
- 1.0" x 0.8" x 0.25" Surface Mount Package.
Application
SONET/SDH, DWDM, FDM, ATM
General Specifications
| Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
| Output Frequency |
|
1.024 |
|
800 |
MHz |
| Supply Voltage | 5 (5.0V)
3 (3.3V) |
Vcc |
4.75
3.15 |
5.00
3.30 |
5.25
3.45 |
VDC
VDC |
| Input Signal | H
P |
|
|
HCMOS
PECL (1) |
|
|
| Output Signal | H (2)
P |
|
|
HCMOS PECL |
|
|
| Rise/Fall Time | 80MHz
200MHz
800MHz |
tR/tF |
|
0.5
0.5
0.25 |
2.0
1.0
0.4 |
ns
ns
ns |
| Duty Cycle |
Dtcl |
40 |
|
60 |
% |
Jitter Generation, rms
(12KHz to 20MHz) |
|
|
0.4 |
1 |
ps |
| Input Tracking Capability |
APR |
±40 |
|
|
ppm |
| Operating Temperature | N
E |
|
0
-40 |
|
+70
+85 |
°C
°C |
(1) Single ended PECL
(2) Option for below output frequency below 200MHz

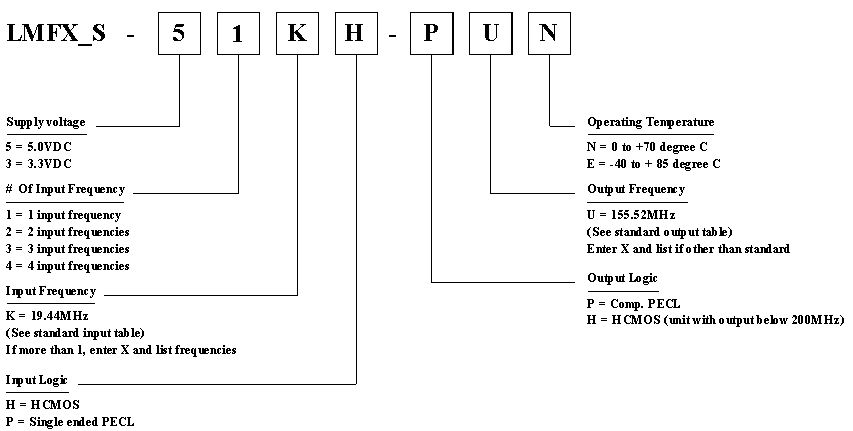

Ordering Information
Standard Input Frequency
| Code |
Frequency |
|
Code |
Frequency |
| A |
8KHz |
|
L |
20.48MHz |
| B |
16KHz |
|
M |
26.00MHz |
| C |
64KHz |
|
N |
27.00MHz |
| D |
1.024MHz |
|
O |
38.88MHz |
| E |
1.544MHz |
|
P |
44.736MHz |
| F |
2.048MHz |
|
Q |
51.84MHz |
| G |
4.096MHz |
|
R |
61.44MHz |
| H |
8.192MHz |
|
S |
112MHz |
| I |
13.00MHz |
|
T |
139.264MHz |
| J |
16.384MHz |
|
U |
155.52MHz |
| K |
19.44MHz |
|
V |
166.6286MHz |
Standard Output Frequency
| Code |
Frequency |
|
Code |
Frequency |
| D |
1.024MHz |
|
O |
38.88MHz |
| E |
1.544MHz |
|
P |
44.736MHz |
| F |
2.048MHz |
|
Q |
51.84MHz |
| G |
4.096MHz |
|
R |
61.44MHz |
| H |
8.192MHz |
|
S |
112MHz |
| I |
13.00MHz |
|
T |
139.264MHz |
| J |
16.384MHz |
|
U |
155.52MHz |
| K |
19.44MHz |
|
V |
166.6286MHz |
| L |
20.48MHz |
|
W |
622.08MHz |
| M |
26.00MHz |
|
V |
666.5143MHz |
| N |
27.00MHz |
|
X |
Other |
| |
|
|
|
|

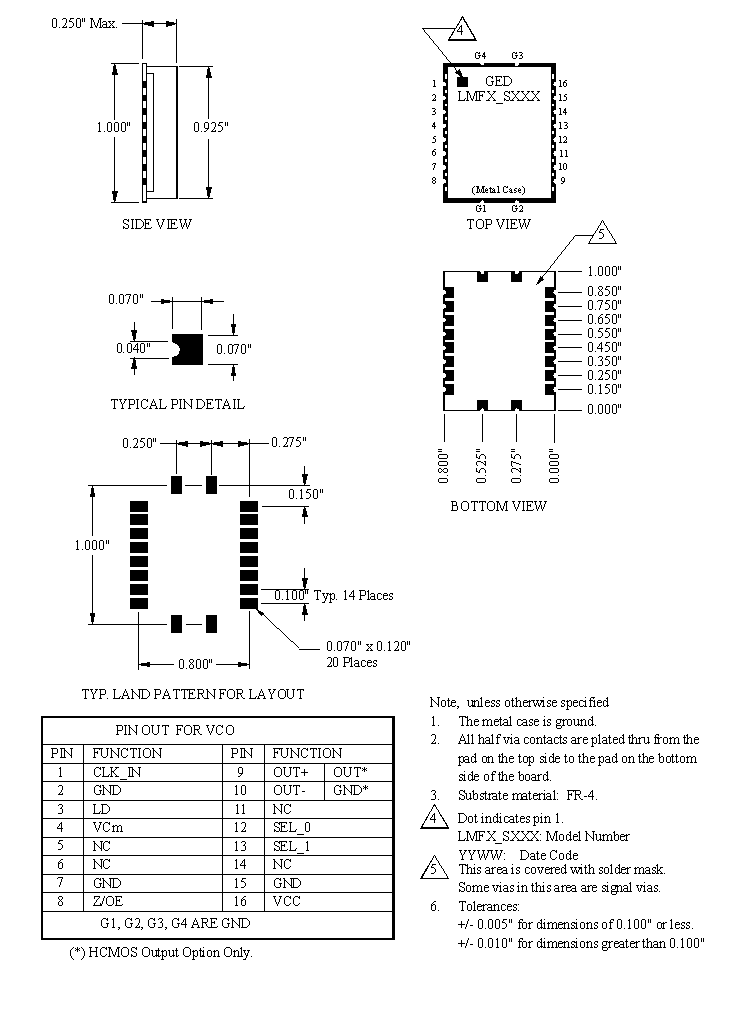

LMFX_S Outline Drawing and Pin Out
|
|
