Portable Signal Generator

New Portable Signal Generator

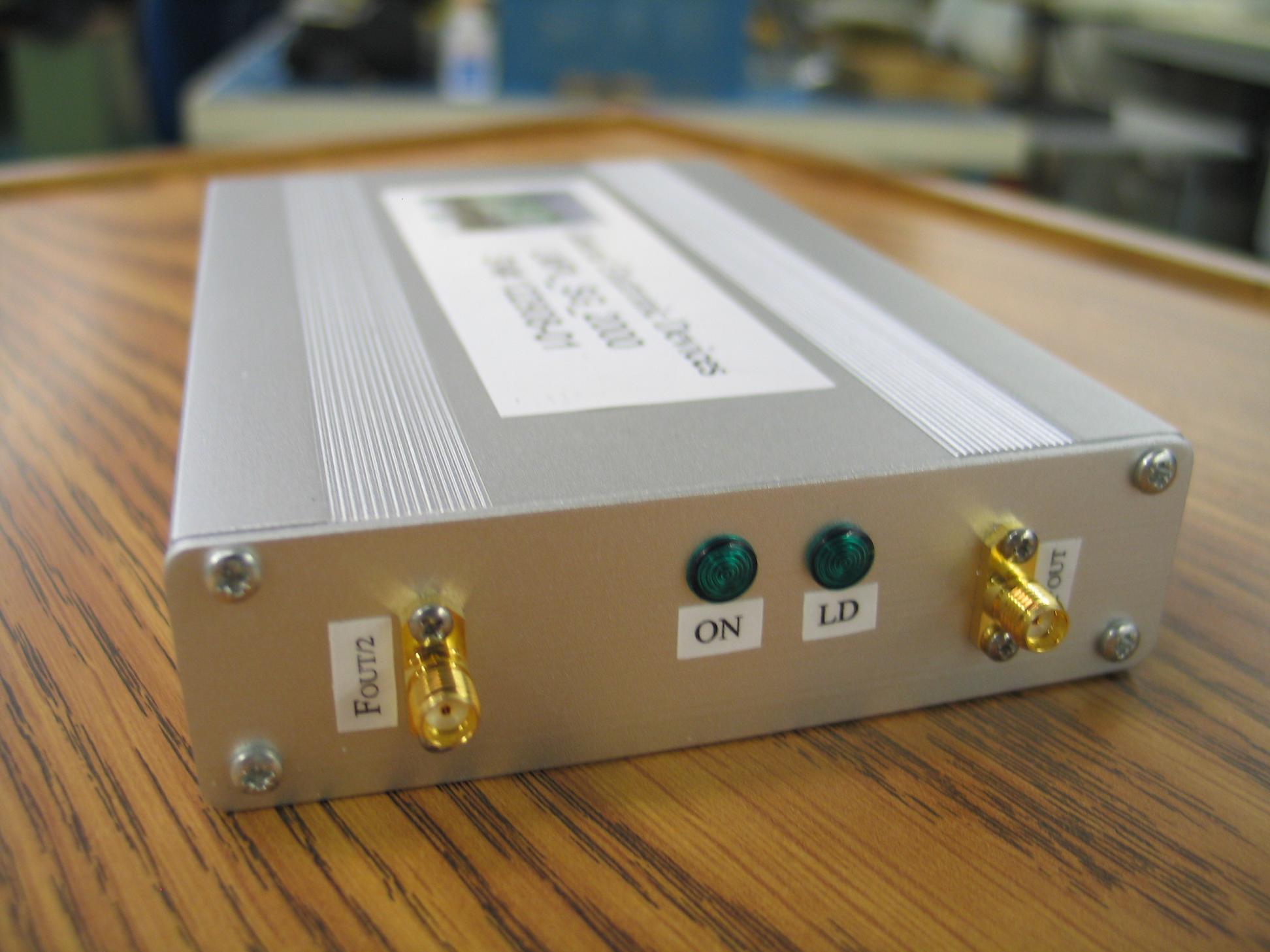

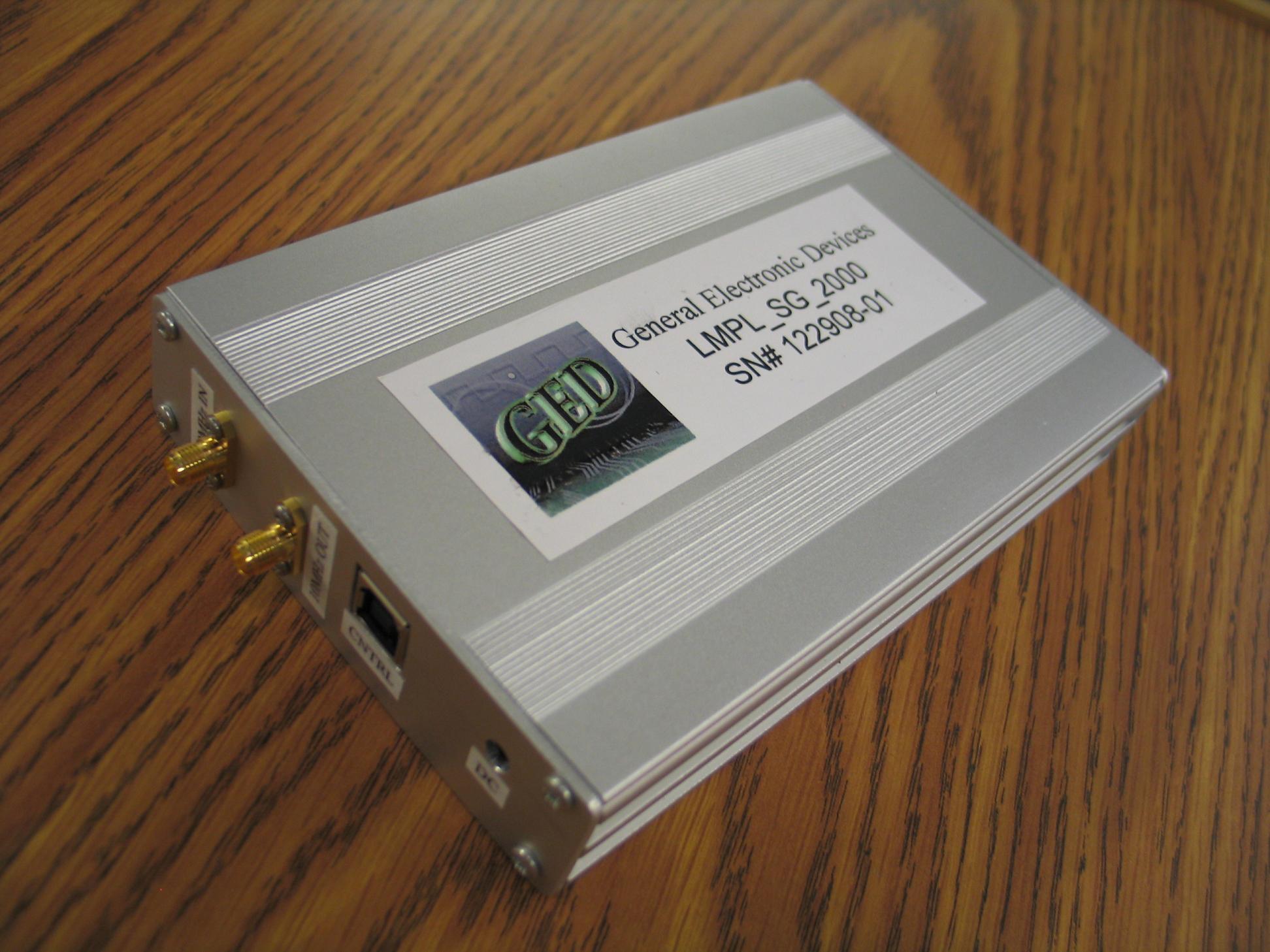

GED completed development of a portable RF Signal Generator Ranging from 1 to 2 GHz with 100kHz Resolution. The generator is fully PC-programmable and features programmable pre-set frequencies, amplitude control, disable outputs, automatic reference detect and many other features making it extremely versatile. This is the newest member of our diverse family of frequency sythesizers.

Google
Search GED www

Product Features

  • Frequency Range from 1 - 2GHz
  • Divide-by-Two Auxiliary Output
  • PC-Controlled with User-friendly Software
  • Programmable Amplitude Control
  • 8 Programmable Manually-Operated Frequencies
  • Output Disable
  • Internal or External Reference with Automatic Detection
  • Visual Indicator for Lock Detect
  • Hand-Sized Rugged Metal Housing
  • AC Adapter

Performance and Specifications

Electrical
Frequency Range:1000 MHz to 2000 MHz
Resolution(Step Size):100kHz
Output Power:+7 dBm ±3 dB
Harmonic:-15 dBc Typ.
Spurious:-60 dBc Typ.
Phase Noise @ 1500MHz Output(Internal Ref.):-60dBc/Hz @ 1 KHz Offset
-75dBc/Hz @ 10 KHz Offset
-110dBc/Hz @ 100 KHz Offset
Frequency Stability (Internal Ref.):±1 ppm
Settling Time: < 10 msecs.
Amplitude Control:31 dB Range with 6 Bits Resolution
Manually-Operated Frequencies:Any 8 Programmable Frequencies
Auxiliary Outputs
Reference Frequency:10 MHz @ +3 dBm ±3 dB
Divide-by-Two:>F0/2 @ 7 dBm ±3 dB
References
External Reference:10MHz @ 3 dBm ±3 dB
Internal Reference (default):+10 dBm @ ±1 ppm
Interface
Lock Indicator:LED On for Lock
Power Indicator:LED On for Power On
PC Interface:Factory-Supplied PC Software via USB
DC Supply:120 AC Adapter
Mechanical and Environmental
Operating Temperature:0 to +50° C
Storage Temperature:-20 to +85° C
Package:6.5"x 4.3"x 1.2" Aluminum Housing
RF Connectors:SMA Female
Control Interface:USB
Manually-Operated Frequencies:Panel DIP
DC Supply:120 VAC Adapter
